Voter ID

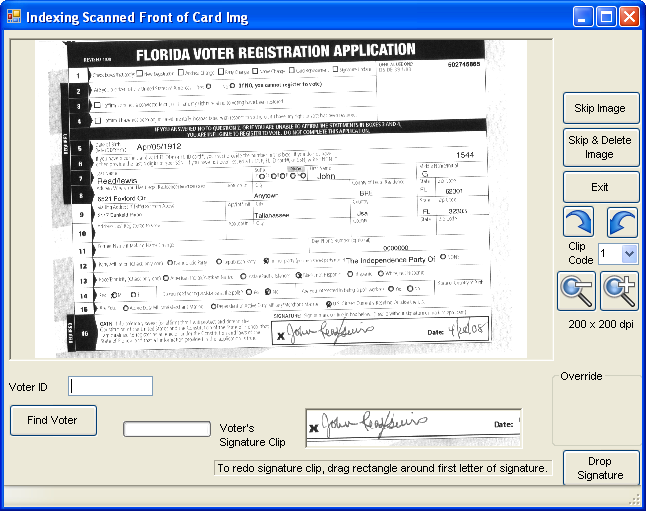

If you are indexing an NVRA form (that is, the document's communication type is C, Scanned Front of Card Img), enter the voter ID from the paper form. If you are indexing a document that does not include the voter ID, leave this field blank and click Find Voter.

Find Voter

If you do not know the voter ID, click Find Voter and search for the voter belonging to the scanned document. When you find the voter, the Indexing dialog will reappear with the voter ID and voter's name displayed below the scanned image.

Birth Year

This field appears after you enter a valid voter ID when indexing an NVRA form. Enter the last two digits of the voter's birth year. If the birth year matches the voter ID, the voter's name will appear to the right of the Birth Year field.

Voter's Signature Clip

The image shown here will be saved as the signature clip associated with the scanned image. If the clip does not display the signature properly, you can reclip it by clicking and dragging with the mouse to create a box enclosing the first letter or so of the signature on the larger image. From this box, Voter Focus will calculate the signature clip and redisplay it. If necessary, repeat this “rubber-banding” process until you capture the full signature in the signature clip area. If surrounding the first letter doesn’t yield a satisfactory clip, try enclosing additional letters or the entire signature.

Drop Signature

If the image does not contain a signature, or the signature is unsatisfactory for some reason, click Drop Signature to refrain from saving a signature clip with the image.

Skip Image

Lets you skip a scanned image so that you can come back to it later in the indexing process. For example, if you cannot find the voter, and want to do research on their record, you could skip the image for now. In order to complete indexing of the batch, you will need to return to it and index the skipped image.

Skip & Delete Image

Lets you omit a scanned image from the indexing process. You would want to do this when the scanned image is so unreadable that it needs to be rescanned. You would then need to pull the paper document from the batch and rescan it by itself or with another batch.

Exit

Click to end the indexing process without indexing the currently displayed image or any that have not yet been indexed. Any images that have been indexed to a voter's record and saved are removed from the batch so that when you return to the batch, it will only contain those images that have not been indexed.

Zoom out to display the full image.

Zoom in on the image.

Use these arrows to rotate the scanned image to a more desirable orientation.

Clip Code

This field appears only when the communication type is 3, Scanned Front of Card Image, or any communication type for voter registration forms.

A clip code is a pixel point on an image—defined as a horizontal (X) and a vertical (Y) position—that designates the position of the upper-left corner of the signature clip. Voter Focus calculates the location of the entire signature clip by using the clip code as a starting point.

For documents other than voter registration forms,which have no clip code, the image shown in the signature clip box is taken from the upper-left corner of the document. If you want to capture a signature, you will need to re-clip it, as described above in Voter's Signature Clip.

Note  The preset clip codes are specified in VOTER FOCUS ADMIN > System Options > Clip Codes. The clip code that appears first in the drop-down list is specified in VOTER FOCUS ADMIN > System Options > Image Indexing > Default Clip Code.

Save

Links the scanned image to the voter's record. If the document is a voter registration application and its scan date on the Image Batch Selection dialog is the most recent date of any other scanned and indexed applications, a separate image of the signature clip is saved and linked to the voter's record.

Override

This is a display-only field that shows the coordinates of the signature clip on the scanned image if the original clip has been reclipped by the user. The pair of numbers designated by P1 indicates the pixel location of the upper-left corner of the signature clip. The P2 pair indicates the lower-right corner of the clip.
